Smart Logger™ V2 | Bluetooth® Temperature & Humidity Data Logger

(2 customer reviews)

From USD $90.00

The Smart Logger V2 is a discrete Bluetooth temperature and humidity data logger. Captures, records, and sends up to 16,384 readings of ambient temperature and relative humidity data.

Clear
Learn More


SKU: N/A
Categories: , , ,

About the Smart Logger V2

Your smart device will detect any Wagner Meters wireless device that features Bluetooth connectivity, such as the Smart Logger V2 or Orion 950 Smart Pinless Wood Moisture Meter, and perform the pairing procedure automatically. There is nothing you need to do; the devices do the work for you.

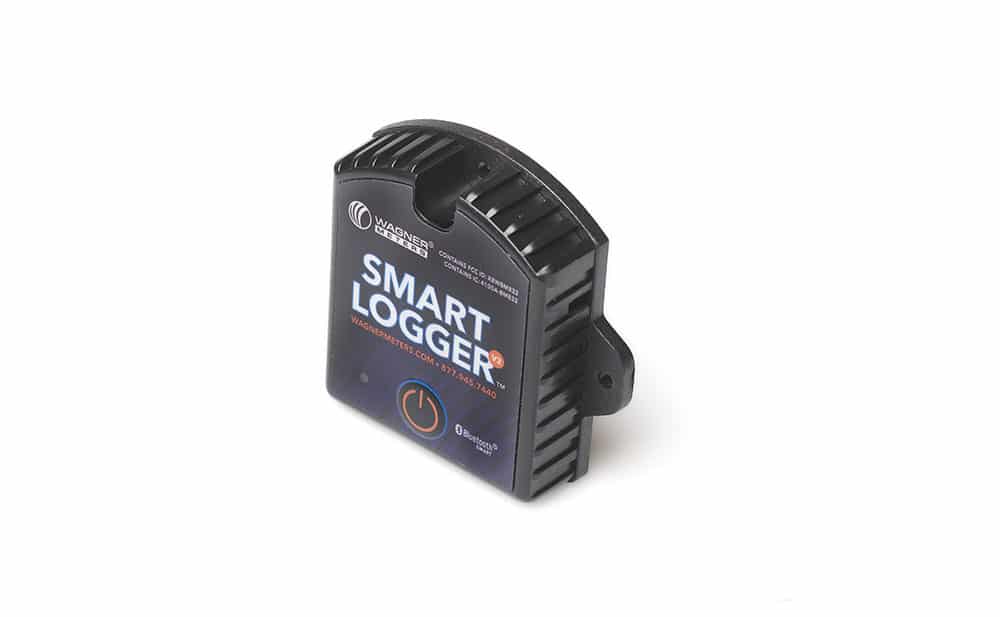

The Smart Logger V2 is a small, lightweight, easily portable and highly accurate monitoring device that tracks ambient temperature and humidity conditions when flooring professionals are away from the job site. It can also be utilized during the wood flooring acclimation process and the storage of wood flooring. The Smart Logger V2 is capable of storing up to 16,384 readings.

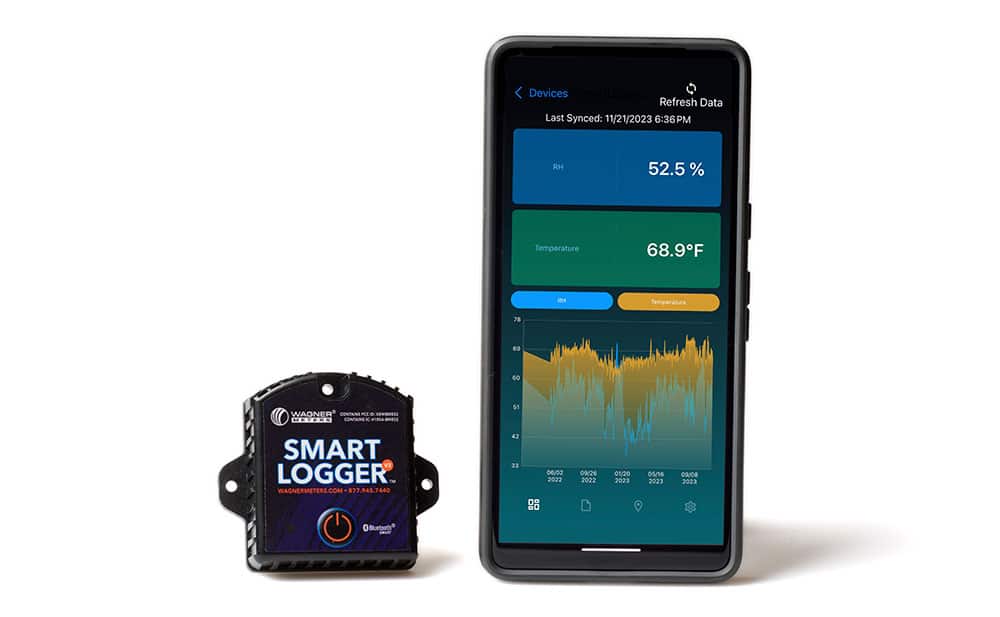

The Smart Logger V2 monitor incorporates the latest Bluetooth® technology and works in tandem with the Wagner Sentry app, which can be downloaded for free at the Apple Store or Google Play. The app connects the Smart Logger V2 monitor through a mobile device’s Bluetooth (Android or iOS devices), enabling users to easily transmit and record data, and even send reports via email.

Technical Details:

  • Signal Transmission Frequency: 2.4GHz
  • Protocol Standard: BLE 5
  • Modulation Mode: GFSK
  • Transmit Interval: 2 seconds
  • Output Power: 0 dBm
  • Communication Rate: 1 Mbps
  • Transmission Distance: Up to 150 ft (46 meters)
  • Storage: 16,384 data measurements
  • Temperature Measurement Range: -13°F (-25°C)~140°F (60°C)
  • Operating Temperature Range: -13°F (-25°C)~140°F (60°C)
  • RH Measurement Range: 0~100%RH
  • Temperature Measurement Accuracy: ±0.1°
  • RH Measurement Accuracy: ±3%RH
  • Net Weight: 1 ounce (30g)
  • Dimensions: 2.4 in. (60mm) x 2.6 in. (67mm) x 0.6 in. (16mm) – Height, with double-stick adhesive pad: 0.8 in. (20mm)
  • Material: ABS, PCB, FR4
  • Shape: Square
  • Power Source: Battery Powered
  • Batteries Included? Yes
  • Batteries Required? Yes
  • Battery Cell Type: Lithium
  • Built-in Battery: Replaceable CR2450 Coin Cell
  • Battery Life: Up to 3 years (Dependent upon mode and frequency of operation)
  • Warranty Description: 1 year
  • Shipping Weight: 1 lb (.45 kg)
  • Optional Password Protection

Have questions? Give us a call: (541) 291-5123.

Downloads

 Smart Logger V2 User Manual
Wagner Sentry app available in the Apple iTunes and Google Play Store
The Wagner Sentry app connects with the (required) Smart Logger V2 device via Bluetooth® 5.0 connection and enables you to monitor and record ambient relative humidity and temperature data in real time from up to 300 devices. The app’s user-friendly interface allows you to program reading intervals, set alarm ranges, and stores up to 16,384 entries of temperature and relative humidity data.

The only way to be sure service conditions remain consistent is through constant observation and recording. The Wagner Meters Smart Logger V2 monitoring device and the Wagner Sentry app are your eyes on the job site 24 hours a day.

  • Save time and money by reducing the need for excess job site visits to monitor ambient conditions.
  • Reduce your liability and avoid “the blame game” with documented monitoring of job site conditions.
  • Maintain your great reputation by using the latest technology to ensure successful outcomes.
  • The Wagner Sentry app also integrates with the Wagner Floor Sentry, an embedded wood floor data logger. By pairing your Smart Logger V2 and Floor Sentry to the Wagner Sentry app, you can view both the ambient and in-floor conditions simultaneously.

Wagner Sentry Apple AppWagner Sentry Android App

2 reviews for Smart Logger™ V2 | Bluetooth® Temperature & Humidity Data Logger

  1. Sean T James (verified owner) –

    [Review of SmartLogger V1] This is a very valuable tool! Super easy to use and at that price point why not buy one for every job. Its a very small and easy cost to add to each job that in return will benefit you and your customers.

  2. Terry Carroll (verified owner) –

    [Review of SmartLogger V1] Maybe a note to say it is split into Android and IOS I was convinced I had a problem, I was looking at the Android instructions using an IOS phone, once I figured that out it’s been very good, keep up the good work
